3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home

China good quality AMR Water Meter on sales
China good quality AMR Water Meter on sales
Richard takes care of all things about our order, business with him makes us without any worrying, a man of trust and capability.

—— -J.H.Kim Korea

Innovation design, good cost. That is the right AMR water meter we are finding!

—— -Pablo T. Reyes Colombia

I'm Online Chat Now

3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home

3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home factory 3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home factory

Large Image : 3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home

Product Details:

Place of Origin:Ningbo, China
Brand Name:ElectroAMR TM
Certification:MC, OIML R49,ISO 4064-1:2005
Model Number:LX-15DWY1, LX-20DWY1

Payment & Shipping Terms:

Minimum Order Quantity:100pcs
Packaging Details:12000pcs/20”GP
Delivery Time:35 days
Payment Terms:T/T, L/C
Supply Ability:30000pcs/month
Detailed Product Description

3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home



Quick Detail:



Applications:household ,high-floors flats as well as industry.
Accuracy:Class C
RF:430~440MHz, 470~510MHz, 868~870MHz, 902~928MHz
Pressure grade:MAP10
Protection grade::IP68
Temperature:    T30
Flow turndown Q3/Q1:125,160





Remote water meter is based on our new generation full electronic water meter, not based on mechanical-electronic water meters. Automatic meter reading via radio frequency.





Description:

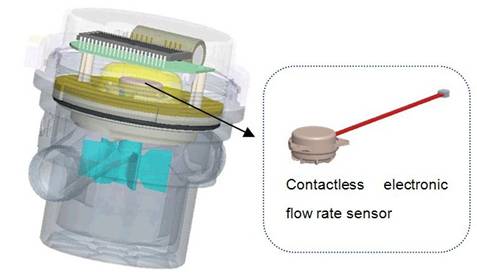

Remote water meter developed from our new generation full electronic water meter produced by one fully innovative technology: contactless electronic flow rate sensor. Available sizes DN15 & DN20.
Measuring principals as: when water pass through the inner chamber of water meter, the impeller with magnet ring rotates, it couples with the electronic flow rate sensor which inside movement component embedded magnet ring by no-contact condition and they rotate synchronously. Also electronic flow rate sensor inside has element with stored electric field energy, the electric field changes together with the rotation movement, so that sensor element gets the accurate electronic signal and it connects signal with control circuit, the CPU of control circuit calculates signals, then reaches the intention of metering. At the same time control circuit converts metering data to computer by wireless RF module, so realizes wireless remote transmission and automatic meter reading.

3 / 4 Inch Smart AMR Remote Automatic Water Meter Reading For Home

Remote water meter is compatible with two automatic meter reading solutions:

-Hand PDA reader, walk-by or drive-by
- Ad-hoc fixed network





Applications:

ElectroAMRTM remote water meter is used for measuring cold water consumption in household and high-floors flats as well as industry.




Remote water meter specifications:



FEATURE

SPECIFICATION

LX-15DWY1

Flow range

0.020m3/h~2.5m3/h

Permanent flow rate Q3

2.5m3/h

Flow turndown Q3/Q1

125

Maximum tolerance

Q2≤Q≤Q4 : ±2%   Q1≤Q≤Q2: ±5%

Accuracy

Class C

Temperature

T30

Enclosure rating

IP68

Pressure grade

MAP10

Pressure loss

△p63

Installation

H

Battery life

8 years

LCD digital showing

9 digit LCD, 0.00001 m3~9999.99999 m3

Materials

Full plastic body

Radio frequency

430~440MHz, 470~510MHz, 868~870MHz, 902~928MHz



Competitive Advantage:

  • Electronic remote water meter provides accurate flow rate measurement, unaffected by grit or particulates
  • Remote reading which greatly increases reading efficiency and saves costs.
  • Much cost saving compared with No Moving Parts AMR water meters such as electromagnetic or ultrasonic water meters
